IEEE802.3at Gigabit 30W Wall-mounted Passive 24V 1.1A POE injector
Product Features:
1. Single-port PoE Injector
PT-PSE100G-24 is a single-port gigabit PoE injector, offers a cost effective, economy power supply solution for IP phones, WLAN access points, network cameras and other IP terminal installations.
2. 26W power output
PT-PSE100G-24 provides a maximum of 26 watts of power through each port and ensuring safe operation of any standard PoE data terminal.
3. Plastic case & power plug integrated design
Plug and play, simple installation. PT-PSE100G-24 PoE injectors are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Product Parameter:
| AC Surge Protection | - L-N 1.2/50 (8/20) Tr/Th us
- 2.0KV (5P/5N)
- L-PE 1.2/50 (8/20) Tr/Th us
- N -PE |
| Input | 100-240Vac 1.0A 50/60Hz |
| Power Pins | 4/5(+), 7/8(-) |
| IP Rated | IP40 |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Immunity | - IEC60068-2-6(Vibration)
- IEC60068-2-27(Impact)
- IEC60068-2-32(Free Fall) |
| EMS | - IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
- IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
- IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV
- IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM
- IEC61000-4-6(CS) 10V(150kHz~80MHz) |
Introdution:
PT-PSE100G-24, it is a single port PoE Injector. It provides 24Vdc, 1.1A power for remote PDs over 2-pairs. It supports both 10/100 Base-T and Gigabit device. It works for 26W PoE PDs, such as wireless APs, Network cameras, IP Phones and other power Ethernet terminals. It is compatible to use with any IEEE802.3af PoE standard.
PT-PSE100G-24 is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

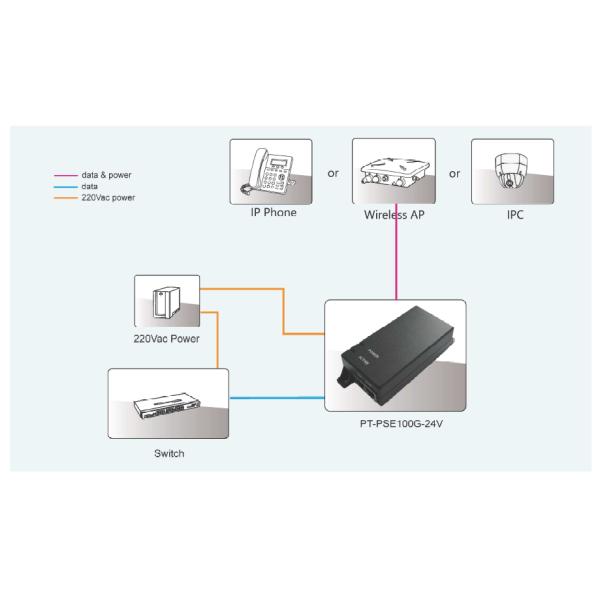

Schematic Diagram:
Ordering:
Order Info. PT-PSE100G-24 24Vdc/1.1A/1000Mbps/4,5(+),7,8(-)
Package Info. PT-PSE100G-24 x1
Power Cord x1 (Optional)
Manual x1
FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.
(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.
(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.
